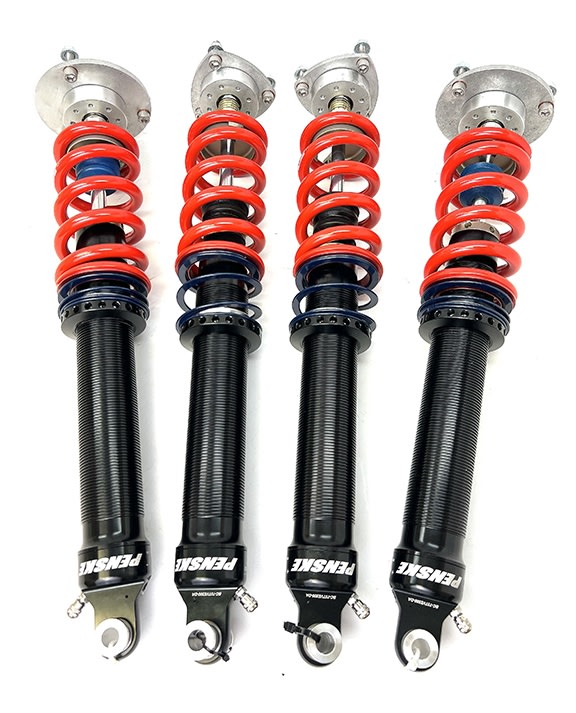

RR Racing Penske Coilover Suspension Stage II for Lexus IS-F and IS
Racing Penske Coilover Suspension Stage II for Lexus IS-F and IS RWD

Alternative Views:


Our Price: $4,499.99


Availability: Usually Ships in 1 to 2 Weeks
Product Code: ISXFSU0002

Recommended Add-ons





Qty:
Description


At the onset of our coilover development project with Penske Racing Shocks, our goal was to produce the ultimate suspension for the Lexus IS/IS-F, something that would meet and/or exceed the cornering performance and feel of dedicated sports/track cars like the 911, Cayman R, and Lotus Elise. Our goal was to achieve instant turn-in response, at-the-limit balance and predictability at the track, all while maintaining poise and reasonable comfort on the street. In addition to our performance goals, we also wanted to break the cost barrier, and offer a top end, no compromise, 100% made in USA, double adjustable (compression and rebound) Penske setup. We are proud to say that we have met all of our design goals, and are pleased to introduce the best performing suspension available for the Lexus IS/ISF, bar none.

Summary of Features and Specs:

  • Penske 7500DA series shocks with double independent compression and rebound adjustment. Custom valving options. Almost 20lbs weight savings over OEM components.
  • Every shock that Penske builds for RR-Racing is built by the same engineers who build the IndyCar, LMP1/Prototype, and Winston Cup shocks, and with the same attention to detail and quality that goes into every race shock Penske builds.
  • Every Penske shock is dyno tested after assembly to ensure quality and consistency.
  • Hypercoil or Eibach ERS main and helper springs with Afco polymer couplers and Delrin isolators on top and bottom perches. Custom spring rates available. Hypercoil springs are US made, extremely high quality (tested within 2% spring rate), and found in virtually every form of racing, including IndyCar and NASCAR.
  • Aurora lower spherical bearings for shock mounts. Top plates use a massive 1.5" OD QA1 upper spherical bearing.
  • Rather than reuse OEM upper mounts, we designed our own upper spherical bearing aluminum top plates, featuring modular & rebuildable design for easy servicing. The other advantage of our upper mounts is that the spring perch is divorced from the spring, which allows completely linear spring motion and significant reduction in bending loads on the shock absorber (vs. KW, Ohlins, and other non-divorced setups).
  • RR Racing is located 20 minutes from Penske Racing Shocks Headquarters, so we can offer our customers the best service and fastest turnaround time on all orders and custom specifications.
  • Standard Spring rates (custom rates available upon request):
    • 900lbs(16kg) Front & 800lbs(14kg) Rear – Standard Road&Track setup
    • 1000lbs (18kg) Front & 900lbs(16kg) Rear – Aggressive Road&Track setup, for those using R-comp tires or slicks. Still very streetable.
  • Extensively track tested and track proven on our shop IS-F!

After placing an order, we initiate a 1-on-1 consultation in order to determine the best shock and spring specifications for your needs.

We highly recommend to install our Ultimate Steering Response Product (USRS) in conjunction with this suspension to improve your steering response (offered as an option to this product).

Note on Noise, Vibration, and Harshness (NVH): We have tested these coilovers on Pennsylvanias roughest pothole laden back roads. Our customers can expect that these coilovers are vibration free, and can be adjusted to ride comfortably on the street. On most roads, they do not make any discernible noise. On rough back roads, some noise, particularly at low engine speeds when the exhaust is quiet, is to be expected. Our upper and lower mounts use spherical bearings rather than sloppy rubber bushings to offer no-compromise response and feedback. Even though we do not use rubber bushings on the suspension mounting points, we can assure our customers that any increase in noise is very minor.

All components in this product are proudly engineered and manufactured here in the United States of America.
Please click on one of the links below for more relevant detailed information about our approach to engineering great products for your Lexus:
RR Racing Lexus IS-F Project.
For a more technical explanation of why this suspension is so good, you can read this article in our Tech-Center: Suspension Design.

Compatibility Table
Lexus IS-F 2008-2014
Lexus IS250 (RWD) 2006+
Lexus IS350 (RWD) 2006+
Lexus RC F 2015+

MAY WE ALSO SUGGEST
Front Control Arm Lower - Inner Front Bushing Kit ISF
Our Price: $59.99

Add
Front Control Arm Lower - Inner Front Bushing Kit ISF

Average Rating: Average Rating: 5 of 5 5 of 5 Total Reviews: 1 Write a review »

  0 of 0 people found the following review helpful:

5 of 5 Hot autocross setup worth the Price November 14, 2023
Reviewer: Jeff H. from McKinney, Texas

2010 Lexus IS F. These Penskes came highly recommended by one of the local guys that regularly tracks his IS F, and he was spot on. This is a hot setup.

During the initial consultation, we elected to go for the aggressive 18/16k spring rates. Even with high spring rates, it is incredible how good ride quality is for the street. I have had this setup installed for a little over a year. I am so glad I stepped up for the Penske setup.

At events, adjustments can be done without taking the wheel off. And those adjustments make a difference. It is incredible how well these dampers control higher spring rates needed for high traction levels.

I regularly get compliments about how smooth my F looks on course. It is evident to observers that the car is being driven hard, beyond what the vehicle naturally wants to do. But it does so with composure. That is confidence inspiring. I recommend them!
