RR Racing Front Big Brake Kit for Lexus GX & Toyota 4Runner 2016+
RR Racing Front Big Brake Kit for Lexus GX470 GX460 & 4Runner



Alternative Views:


Our Price: $1,249.99
Sale Price: $1,149.99
Savings: $100.00

Availability: Usually Ships in 24 to 48 Hours
Product Code: GX4FBK0003


Brake Line:


Caliper Color:


Front Rotors:


Rear Rotors:


Rear Pads:


Qty:
Description Technical Specs


After experiencing repeated caliper piston seizure on our shop Lexus GX470, we designed a new brake kit to improve brake performance and reliability. Unfortunately, the original calipers are notorious for experiencing piston seizure due to the fact that caliper is made from cast iron and the pistons are made from steel – materials that easily corrode. Rather than replace with remanufactured auto store calipers (which will typically fail within a year), or expensive new calipers from the dealer, owners of Lexus GX and Toyota 4Runners now have the option of upgrading to our new 6 piston performance brakes.

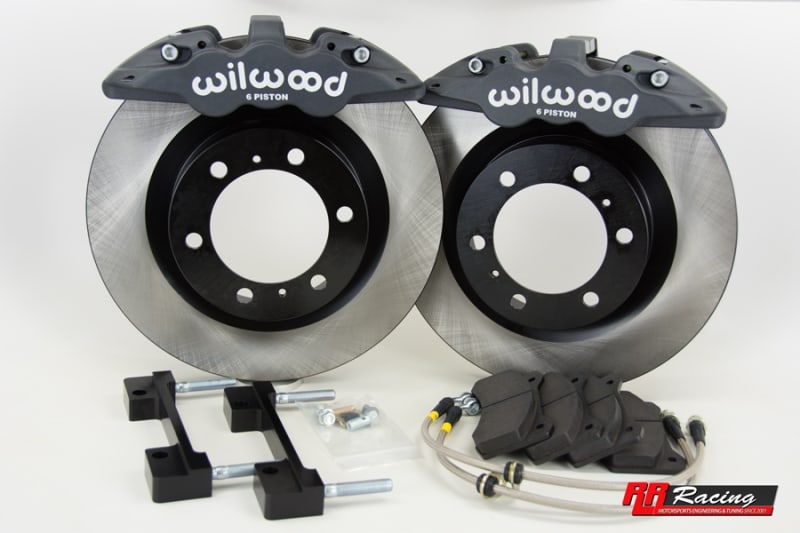

Our GX front brake kit is easily on par with the venerable Brembo caliper/rotor found on top performing cars such as the Lexus ISF. This BBK utilizes Wilwoods massive Aero6, 6 piston front calipers. Unlike the cast aluminum Brembo calipers on the IS-F, the Wilwood Aero6 calipers are forged, and feature internal seals for higher temperature capability.

Please note that the color of Wilwood Aero 6 calipers we ship now is different from the photo of this product. Wilwood changed anodizing to grey from black. They claim that new anodizing has improved surface hardness.

This product features include:

  • Wilwood Forged Aluminum Aero 6 piston calipers. Forged aluminum construction with 6 differential bore pistons made from stainless steel that will never corrode or seize.
  • Aero 6 calipers come with standard black anodized finish, but available custom powder coated as well.
  • Standard rotor thickness is 27.5mm which we upgrade significantly to 32mm, resulting in longer brake rotor life, greater thermal capacity, and higher resistance to warpage.
  • High temperature brake pads. Even the highest temperature pads for OEM calipers fade quickly beyond 800F. The BP20 compound is rated up to 1100F. This means that you will not fade these brakes, even when braking beyond 100mph, or towing heavy loads.
  • Offered in optional powder coated paint colors with RR Racing logo (please specify in order notes if you prefer no logo)


All components in this product kit, with the exception of the brake rotor castings, are proudly engineered and manufactured here in the United States of America.

Please click on one of the links below for more relevant detailed information about our approach to engineering great braking systems for your Lexus:
Brake System Design by RR Racing
Brake Pad Selection Guide
RR Racing Lexus IS-F Project

table.tableizer-table { border: 1px solid #CCC; font-family: Arial, Helvetica, sans-serif; font-size: 12px; } .tableizer-table td { padding: 4px; margin: 3px; border: 1px solid #ccc; } .tableizer-table th { background-color: #104E8B; color: #FFF; font-weight: bold; }
Compatibility Table
table.tableizer-table { border: 1px solid #CCC; font-family: Arial, Helvetica, sans-serif; font-size: 12px; } .tableizer-table td { padding: 4px; margin: 3px; border: 1px solid #ccc; } .tableizer-table th { background-color: #104E8B; color: #FFF; font-weight: bold; }
Make Model Year Range
Lexus GX460 2016-2019
Toyota 4Runner 2016-2019
